Bulb flat steel for shipbuilding

Bulb flat steel for shipbuilding

The bulb flat steel is a kind of medium section material which is mainly used in the field of shipbuilding and bridge building, and the shipbuilding bulb flat steel is an auxiliary medium section material for shipbuilding.

E-mail:[email protected]

Online ChatSend your Inquiry

Bulb flat steel for shipbuilding Description

Bulb flat steel introduction:
The bulb flat steel is a kind of medium section material which is mainly used in the field of shipbuilding and bridge building, and the shipbuilding bulb flat steel is an auxiliary medium section material for shipbuilding. In recent years, with the rapid development of shipbuilding industry, there is a strong demand for shipbuilding bulb flat steel.

Shipbuilding bulb flat steel grades:
The steel grade of shipbuilding bulb flat steel corresponds to the ship plate, which can be divided into general strength (grade A, B, D and E) and high strength (AH32, AH36, DH32 and DH36 etc.). The shipbuilding steel plate certificated by different classification societies needs to be matched with bulb flat steel certificated by different classification societies.

Shipbuilding bulb flat steel application:
In the design of large ships and regular ships, the main hull mostly uses the shipbuilding bulb flat steel, with the same thickness and steel grade to the connected shipbuilding steel plate, as the bone (also known as rib or keel).

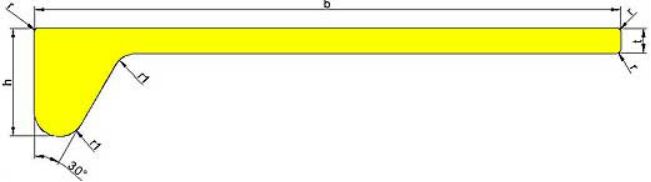

Shipbuilding bulb flat steel size:

Model size(mm) CSA (cm2) weight (kg/m)
b t h r1 r
HP80x5 80 5 19 4 ≤1.5 5.41 4.25
HP80x6 6 20 ≤2 6.21 4.88
HP100x7 100 7 22.5 4.5 ≤2 8.74 6.86
HP100x8 8 23.5 9.74 7.65
HP120x6 120 6 23 5 ≤2 9.32 7.32
HP120x7 7 24 10.52 8.26
HP120x8 8 25 11.72 9.2
HP140x7 140 7 26 5.5 ≤2 12.43 9.75
HP140x8 8 27 13.83 10.85
HP140x10 10 29 ≤3 16.63 13.05
HP160x7 160 7 29 6 ≤2 14.6 11.46
HP160x8 8 30 16.2 12.72
HP160x9 9 31 17.8 13.97
HP160x11 11 33 ≤3 21 16.49
HP180x8 180 8 33 7 ≤2 18.86 14.8
HP180x9 9 34 20.66 16.22
HP180x10 10 35 ≤3 22.46 17.63
HP180x11 11 36 24.26 19.04
HP200x9 200 9 37 8 ≤2 23.66 18.57
HP200x10 10 38 ≤3 25.66 20.14
HP200x11 11 39 27.66 21.71
HP200x12 12 40 29.66 23.28
HP220x10 220 10 41 9 ≤3 29.66 22.27
HP220x11 11 42 29 24.5
HP220x12 12 43 31.2 26.22
HP240x10 240 10 40 10 ≤3 33.49 25.5
HP240x11 11 45 34.89 27.39
HP240x12 12 46 37.29 29.27
HP260x10 260 10 47 11 ≤3 36.11 28.35
HP260x11 11 48 38.71 30.39
HP260x12 12 49 41.31 32.43
HP280x11 280 11 51 12 ≤3 42.68 33.5
HP280x12 12 52 45.48 35.7
HP280x13 13 53 48.28 37.9
HP300x11 300 11 54 13 ≤3 46.78 36.7
HP300x12 12 55 49.79 39.09
HP300x13 13 56 52.79 41.44
HP320x12 320 12 58 14 ≤3 54.25 42.6
HP320x13 13 59 57.25 45.09
HP320x14 14 60 ≤4 60.85 47.6
HP340x12 340 12 61 15 ≤3 58.84 46.2
HP340x13 13 62 62.24 48.86
HP340x14 14 63 ≤4 65.54 51.5
HP370x13 370 13 66.5 16.5 ≤3 69.7 54.7
HP370x14 14 67.5 ≤4 73.4 57.6
HP370x15 15 68.5 77.1 60.5
HP400x14 400 14 72 18 ≤4 81.48 63.96
HP400x15 15 73 85.48 67.1
HP400x16 16 74 89.48 70.2
HP430x14 430 14 76.5 19.5 ≤4 89.7 70.6
HP430x15 15 77.5 94.19 73.9
HP430x17 17 79.5 102.79 80.7
HP430x19 19 81.5 111.39 87.4
HP430x20 20 82.5 115 90.8
